SRM 40-10000 rpm rau cov khoom siv hauv chav ua noj
SRM rau cov khoom siv hauv chav ua noj
Peb lub tuam txhab hloov tsis kam lub cev muaj zog (rau lub tshuab ua noj) txhua yam tshiab tshiab

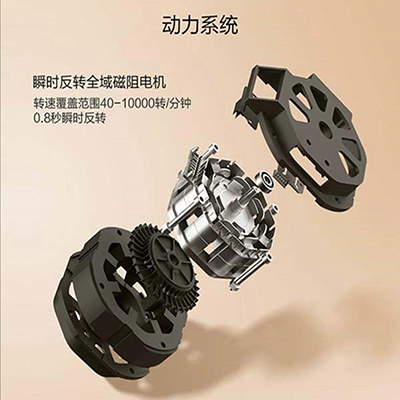

Instant thim rov qab txhua qhov hloov pauv tsis kam lub cev muaj zog
-Kev ceev npog ntau yam: 40-10000 rpm
-0.8 sec instant thim rov qab
-35rpm-15000rpm
-Txoj kev tsav tsheb ntau dua
-Tseeb

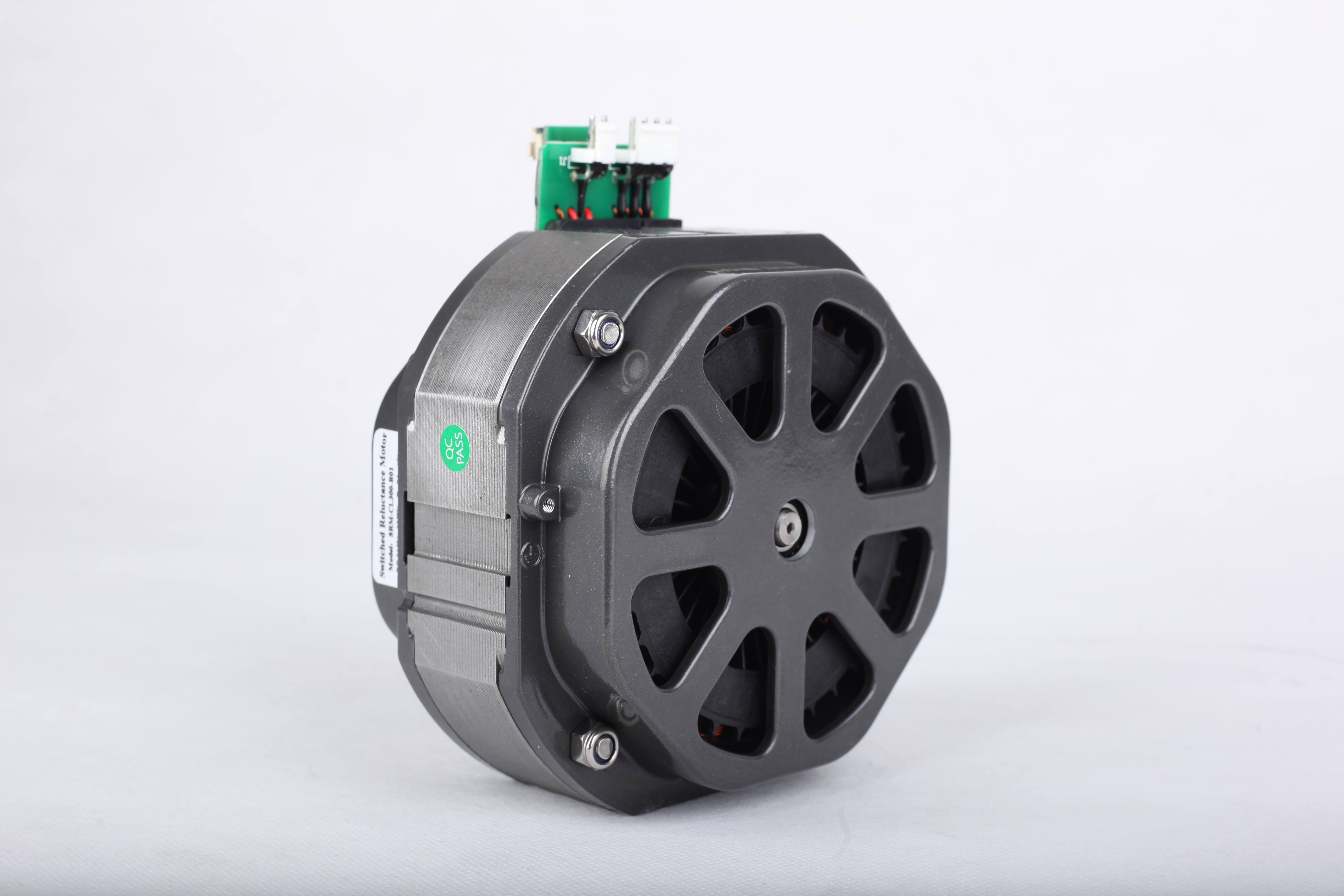

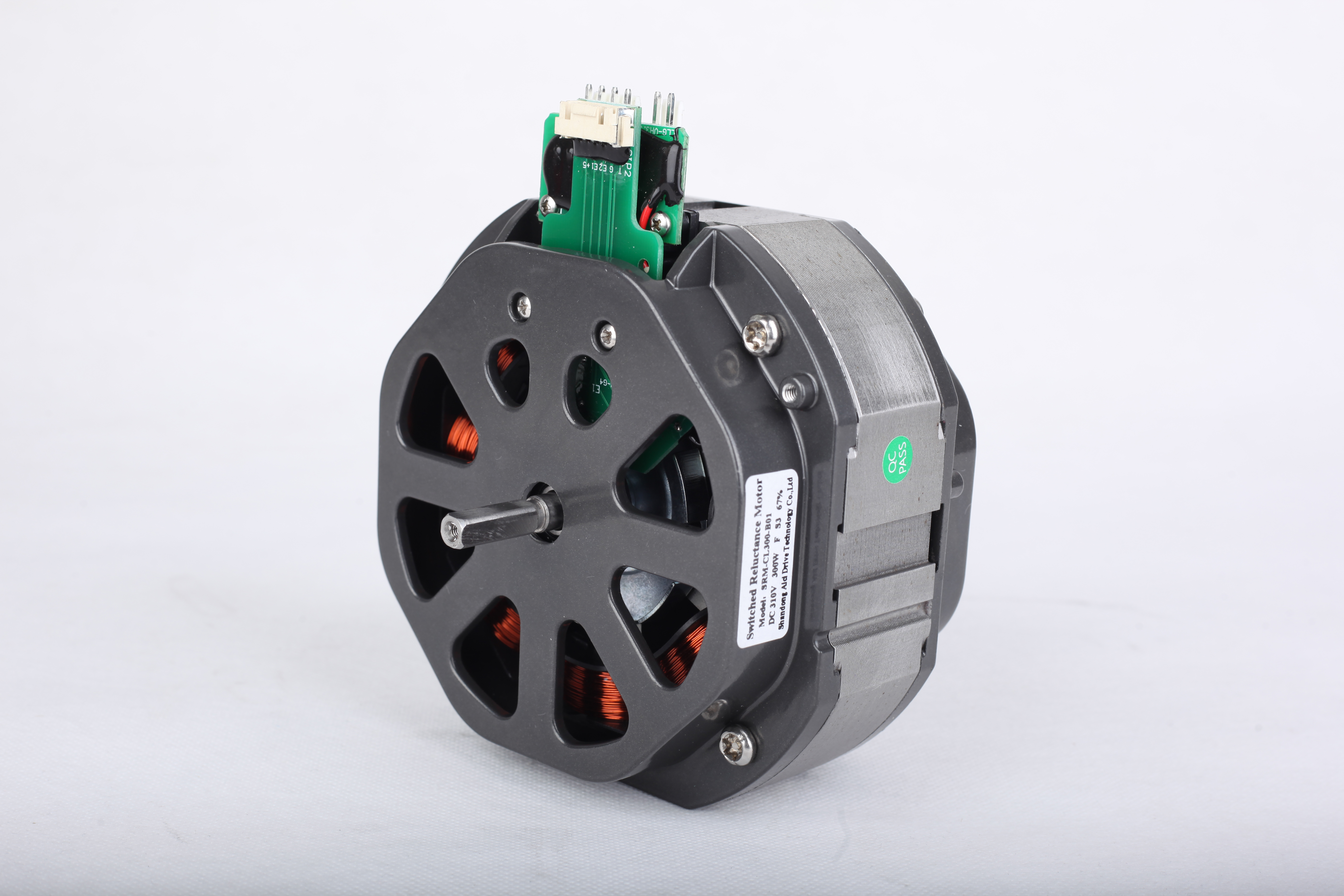

High-precision switched reluctance lub cev muaj zog rau ntau lub tshuab ua noj ua haus nrog lub peev xwm ntau lawm 15,000 teeb ib hlis
High-precision switched reluctance lub cev muaj zog maub los rau multi-function zaub mov processor

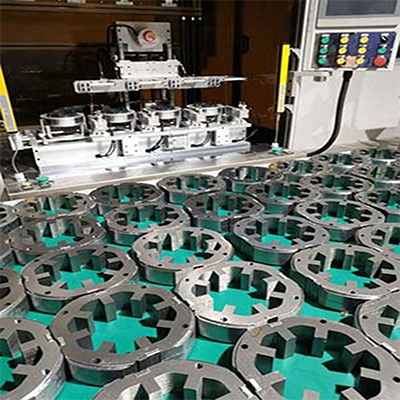

Kev tsim khoom loj thiab xa tawm ntawm kev hloov pauv tsis txaus siab rau cov khoom noj khoom haus multifunctional
Xinda yog ib lub tuam txhab ntxov tshaj plaws nyob rau hauv Suav teb uas muab cov khoom tsim nyog SRD nrog kev ywj pheej cov cuab yeej cuab tam hauv batch rau cov khoom siv hauv tsev.
Controller nrhiav tau siv rau multifunctional zaub mov tshuab
Peb lub tuam txhab cov khoom siv nyob rau hauv Ningbo Fangtai Kitchenware tuam txhab "Mibo" ua noj ua haus tshuab (siv)

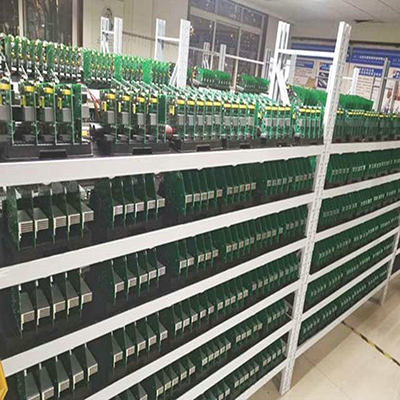

Lub cev muaj zog hluav taws xob tswj lub thawv thiab xa khoom (tam sim no 5,000 teeb tsa ib hlis, thiab nthuav dav mus rau 50,000 teeb)
| Basic tsis | Basic tsis | Tus nqi |
| qis ceev | Min Ceev | 35rpm ua |
| kev kub ceev | Max ceev | 10500 rpm |
| Torque ntau | Torque ntau | 2.5-3.0nm (min rpm) - 0.2nm (max rpm) |
| Siab zog | Max zog | 550 W |
| suab nrov nrov | Suab nrov ntawm Max ceev | ≤ 78db |
| Tsav tsheb kauj vab | Kev sib hloov kev taw qhia | Instantaneous rau pem hauv ntej thiab thim rov qab nyob rau hauv ib lub sij hawm luv luv. |
| Rwb thaiv tsev tiv thaiv chav kawm | Rwb thaiv tsev tiv thaiv qib ntawm Motor | H |
| Ua haujlwm kub ambient | Kev nyab xeeb ua haujlwm ambient kub ntawm lub cev muaj zog | -10 ℃ -85 ℃ |
| Lub cev muaj zog ua haujlwm kub | Kev nyab xeeb ua haujlwm kub ntawm lub cev muaj zog | ≤ 120 ℃ |
| Lub cev muaj zog hlau kub yog siab | Max winding kub | 180 ℃ |
| Controller input voltage | PCBA input voltage | 120v lossis 240v nominal AC |
| Cua sov muaj nuj nqi | Cua sov | YOG muaj |

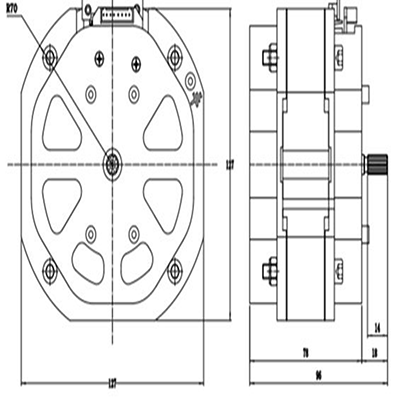

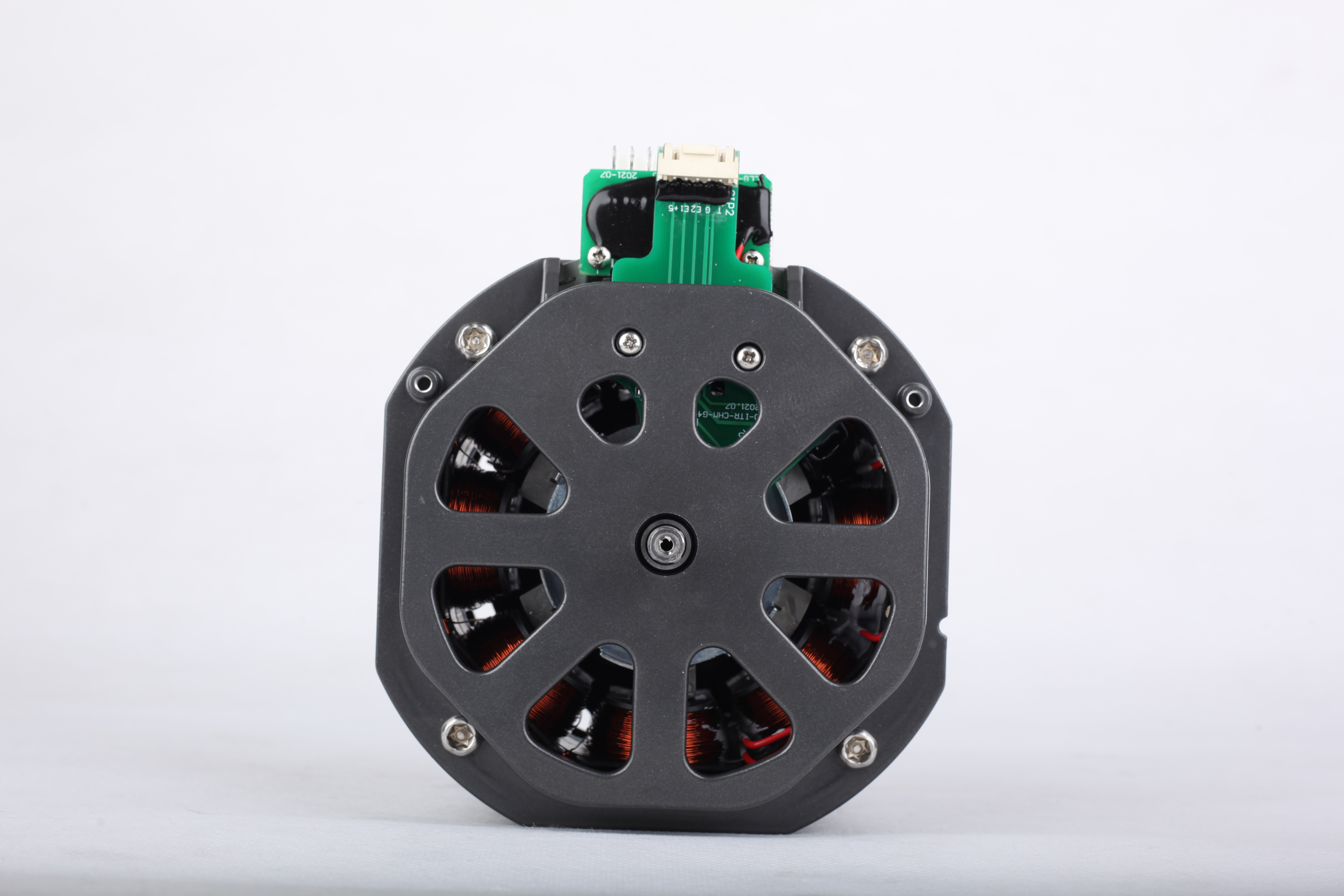

1. Lub cev muaj zog specification loj
Lus Cim: Qhov siab qhov taw qhia tuaj yeem yog los ntawm 78mm txog 74m;daim ntawv lub cev muaj zog thiab tuaj yeem hloov kho raws li cov neeg siv khoom xav tau.
2. Cov lus piav qhia ntawm PCAB tswj qhov system

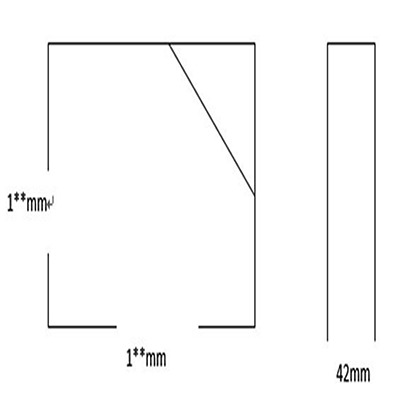

Hom A. Daim Ntawv Qhia Dimensions:
Cov duab tshwj xeeb thiab qhov loj me yuav tsum tau txiav txim siab raws li tus neeg siv khoom tsim thiab kev sib tham.
1) Cov maub los muaj cov khoom siv fais fab, cov dab dej kub, tswj, tsav, capacitors thiab lwm yam, thiab tej zaum yuav muaj xws li hloov cov khoom siv hluav taws xob (qhov no yog qee zaum hauv lwm qhov ntawm lub tshuab ua noj).Nrog rau kev tiv thaiv nres, tiv thaiv overheating thiab lwm yam kev tiv thaiv tseem ceeb.
2).Txheej txheem cej luam ntawm kev ua tau zoo thiab cov qauv
| CE Electromagnetic Compatibility | Kev sib hloov rau pem hauv ntej thiab thim rov qab ntawm txhua qhov nrawm hauv 1-1.5 vib nas this | Kev tshawb fawb algorithm | Nres anti-shake algorithm |
| Dual 85 degree tus qauv | Mute technology, cuam tshuam kev siv tshuab | Kev ntseeg siab, siab sib xws, lub neej ntev | Cov qauv hauv tebchaws |
Ob: normal version
Ib qho kev qhia tshwj xeeb nruab nrab uas tuaj yeem muag ntawm tus nqi qis.
1. Lub hauv paus kev ua tau zoo yog raws li nram no:
| Basic tsis | Basic tsis | tus nqi
|
| qis ceev | Min Ceev | 40+ rpm |
| kev kub ceev | Max ceev | 10500 rpm |
| Torque ntau | Torque ntau | 2nm (min rpm) - 0.1nm (max rpm) |
| Siab zog | Max zog | 450 W |
| suab nrov nrov | Suab nrov ntawm Max ceev | ≤ 83db |
| Tsav tsheb kauj vab | Kev sib hloov kev taw qhia | Instantaneous rau pem hauv ntej thiab thim rov qab nyob rau hauv ib lub sij hawm luv luv. |
| Rwb thaiv tsev tiv thaiv chav kawm | Rwb thaiv tsev tiv thaiv qib ntawm Motor | H |
| Ua haujlwm kub ambient | Kev nyab xeeb ua haujlwm ambient kub ntawm lub cev muaj zog | -10 ℃ -85 ℃ |
| Lub cev muaj zog ua haujlwm kub | Kev nyab xeeb ua haujlwm kub ntawm lub cev muaj zog | ≤ 120 ℃ |
| Lub cev muaj zog hlau kub yog siab | Max winding kub | 180 ℃ |
| Controller input voltage | PCBA input voltage | 120v lossis 240v nominal AC |
| cua sov | Yog/tsis muaj | Yog lawm |
2. Cov lus piav qhia ntawm PCAB tswj qhov system

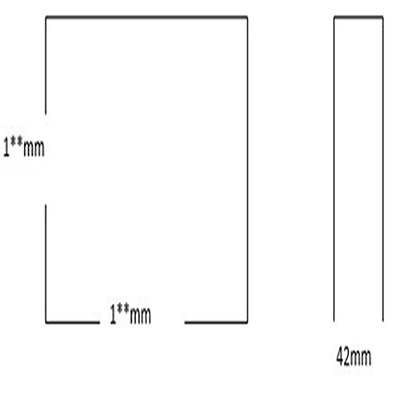

Qhia qhov loj me me:
Cov duab tshwj xeeb thiab qhov loj me, sib tham thiab txiav txim siab
Cov maub los muaj cov khoom siv hluav taws xob mos, lub dab dej kub, tswj, tsav, capacitors thiab lwm yam, thiab tuaj yeem xaiv los yog tsis suav nrog cov khoom siv hluav taws xob hloov pauv.Nrog rau kev tiv thaiv nres, kev tiv thaiv overheating thiab lwm yam kev tiv thaiv tseem ceeb tau teev tseg los ntawm cov neeg siv khoom.Tsis muaj cua sov / cua sov yog xaiv tau.
B: SRD khoom rau lwm yam khoom siv hauv tsev ntawm Ai Magnetic Technology
AICI muaj zog SRD thev naus laus zis thiab R & D muaj peev xwm, uas tuaj yeem ua tau raws li koj cov khoom xav tau hauv lub sijhawm luv luv.
| siv | ceev rpm | suab nrov | txoj kev loj hlob | Technology thiab cov khoom |
| High-speed phab ntsa breaker | Tsis muaj load 45000;load 30000 | Ua raws li lub teb chaws tus qauv | 90 noj | Ua kom tiav technology, cov khoom tiav |
| tes tshuab ziab khaub ncaws | 45000-50000 | Ua raws li lub teb chaws tus qauv | 45 noj | Ua kom tiav technology, cov khoom tiav |
| tshuab ntxhua khaub ncaws | Txhua qhov xav tau ceev (nrog rau kev tsav ncaj qha thiab kev kub ceev) | Ua raws li lub teb chaws tus qauv | 90 noj | Ua kom tiav technology |
| kiv cua (fan), Cua txias compressor | Txhua qhov xav tau ceev (nrog rau kev tsav ncaj qha thiab kev kub ceev) | Ua raws li lub teb chaws tus qauv | 90 noj | Ua tiav technology, qee cov khoom tiav tiav |
| khib nyiab shredder | Direct tsav nyob rau hauv tej yam yuav tsum tau ceev ntau yam | Ua raws li lub teb chaws tus qauv | 90 noj | Ua kom tiav technology |
| Lub tshuab nqus tsev vacuum, plaub hau tshuab | 100,000 rpm + | Ua raws li lub teb chaws tus qauv | 450 noj | tshuab |
Xinda Electric Technology Co., Ltd. manufacture switched reluctance motor, thiab nws kuj yog ib lub tuam txhab uas muaj peev xwm muab kaw reluctance motors thiab controllers nrog ywj siab tswv yim txoj cai rau tsev neeg cov khoom nyob rau hauv batch.Txais tos kom koom tes!
Khoom taw qhia:
Tom qab xyoo ntawm kev tshawb fawb tsis tu ncua, Xinda tau ua tiav cov thev naus laus zis tseem ceeb ntawm kev hloov pauv tsis txaus siab rau cov khoom siv hauv tsev, thiab tau tsim cov khoom lag luam uas muaj kev ywj pheej ntawm kev txawj ntse muaj cai.Lub tuam txhab cov khoom lag luam tau siv dav hauv cov khoom siv hauv tsev, xws li tshuab ntxhua khaub ncaws, tshuab ntxhua khaub ncaws, kev kub ceev phab ntsa tawg, lub tshuab nqus tsev, lub tshuab ziab khaub ncaws, cua compressors, thiab lwm yam, thiab tau ua tiav cov khoom xa tawm mus rau Tebchaws Europe thiab Tebchaws Meskas thiab lwm lub tebchaws. .
Cov yam ntxwv ntawm SRM-CL / GD / JD series motors:
Nws muaj cov yam ntxwv ntawm qhov dav dav ncaj qha tsav, kev ua haujlwm siab, kev ua haujlwm siab, tsis tshua muaj suab nrov, lub sijhawm ua haujlwm ntev, nquag mus rau pem hauv ntej thiab thim rov qab thiab lub neej ntev.Noj SRM-CL ua piv txwv, cov khoom no muaj ntau hom kev tsav ncaj qha, cov yam ntxwv zoo tshaj plaws, kev kub ceev, siab precision, siab cov ntsiab lus thiab cov txheej txheem nyuaj.
Kev tsis pom zoo ntawm SRM-CL / GD / JD series motors:
Basic Performance Parameters
| Voltage specification | Direct tsav ntau yam | muaj peev xwm ceev | tswj suab nrov |
| 110 V 220 V | 30-11000 rpm 70-25000 rpm | 100000 rpm | Kev ntsiag to ≤ 79db Yam tsawg kawg nkaus ≤ 84db
|
High-speed, direct-drive switched reluctance motors rau multifunctional zaub mov tshuab
Xinda yog thawj lub tuam txhab hauv Suav teb uas tuaj yeem tsim, tsim, thiab muag cov motors hauv ntau qhov ntau.
Lub 45,000-rpm high-speed switched reluctance motor tsim los ntawm Xinda Technology tuaj yeem ua haujlwm tau ntev nrog kev thauj khoom ntawm 30,000 rpm.Nws yog lub cev muaj zog uas tuaj yeem tawg cov phab ntsa.
