Roller shutter motor XD-1500B Featured duab

Cov menyuam shutter lub cev muaj zog XD-1500B

Lus piav qhia luv luv:

1. Ua haujlwm voltage: AC380V

2. Lub zog hluav taws xob: 1250W

3. Rated tam sim no: 1.75A

4. Rated ceev: 5r/min

5. Rated tso zis torque: 1003N m

6. Kev ua haujlwm: S2

Xa email rau peb

Product Detail

Khoom cim npe

Khoom Qhia

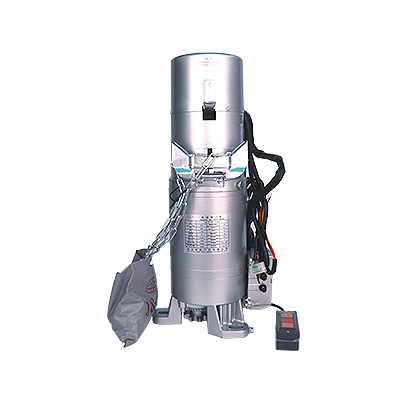

Cov menyuam shutter lub cev muaj zog XD-1500B1

Cua Resistant ShutterQhov Rooj Tsav XD-1500B

Cov menyuam shutter lub cev muaj zog XD-1500B

Cua Resistant Shutter Qhov Rooj TsavXD-1500B Sab Phaj Accessories

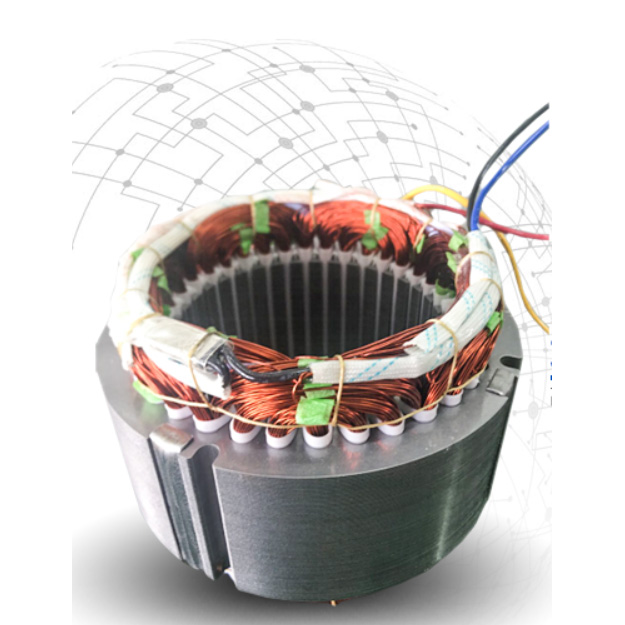

Cov menyuam shutter lub cev muaj zog XD-1500B2

6 ncej tooj liab tub ntxhais lub cev muaj zog
100% tooj liab hlau: ob txheej txheej winding txheej txheem, khoom txaus thiab ruaj khov tam sim no.
WISCO 600 silicon steel ntawv: lub neej ntev ntawm kev kub ceev stamping.

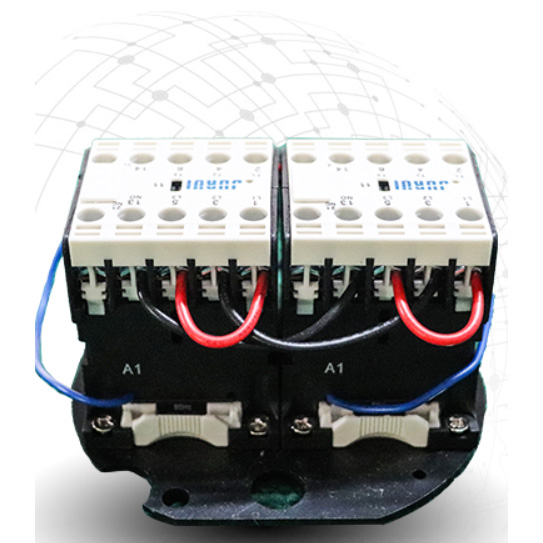

Cov menyuam shutter lub cev muaj zog XD-1500B4

AC contactor
Lub neej ntev: txog 200,000 zaug ntawm kev siv ib txwm.
Kev tiv thaiv siab: suab qis thaum muaj zog thiab kaw.
Kev siv hluav taws xob qis ua haujlwm ntawm lub kauj: rub-hauv qhov hluav taws xob ntau yog qhov loj, mus txog 0.7-1.2Us (tus qauv rau cov neeg sib txuas lus zoo tib yam yog 0.85-1.1Us), thiab qhov hluav taws xob tam sim ntawd rub-hauv voltage tuaj yeem qis li 130V. .
Kev vibration-resistant thiab nplaim-retardant: tshem tawm kev cuam tshuam hauv Circuit Court, kev sib cuag muaj peev xwm dhau, tuaj yeem cuam tshuam thiab txuas cov dej ntws loj, thiab tuaj yeem tiv thaiv kev puas tsuaj los nag xob nag cua.

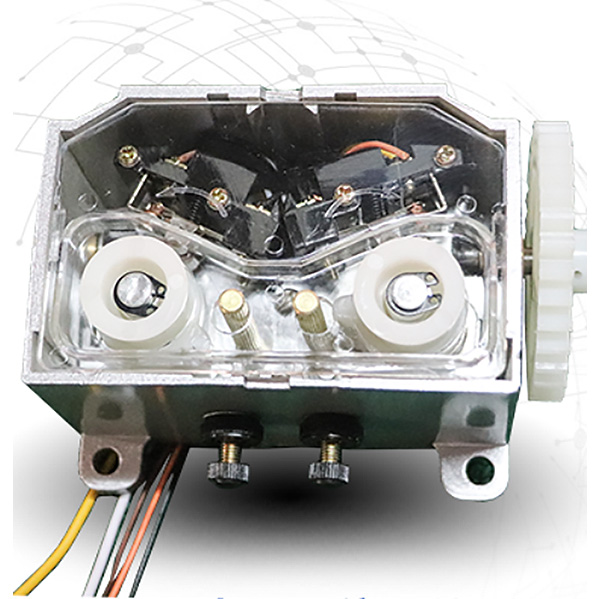

Cov menyuam shutter lub cev muaj zog XD-1500B3

Dual limit switches
Kab thiab cab iav tsav: Cov cab cab thiab cab iav tsav hom yog saws, kev sib hloov yog ruaj khov, ruaj thiab txhim khu kev qha.
Tag nrho cov nyiaj tiv tauj: lub caij nplooj ntoos hlav siab shrapnel, kev sib cuag zoo, bearable thiab ruaj khov, tuaj yeem dhau tam sim no loj.
Coarse adjustment + fine adjustment: limit adjustment, muab faib ua coarse adjustment and fine adjustment, precision to in 5mm, tsis muaj txhaum txav.
Patented tsim: ob chav txwv tswj, tiv thaiv kev sib tsoo.

Scope ntawm daim ntawv thov

Haum rau dov shutter qhov rooj hauv khw, factories, villas, garage qhov rooj, thiab lwm yam.

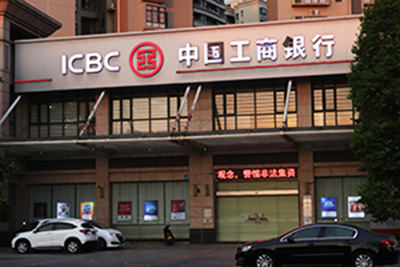

Khw

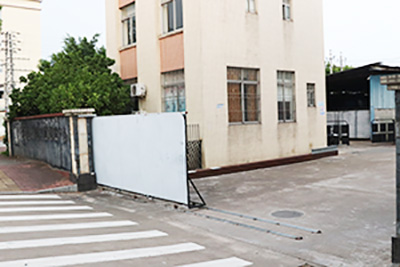

Rhiav

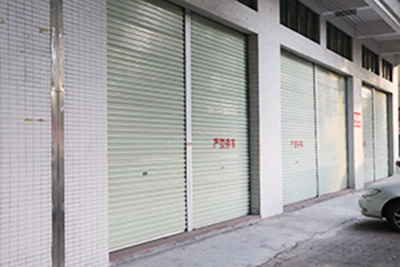

Chaw nres tsheb

Installation thiab siv

1.Txhawm rau kom muaj kev nyab xeeb, thov hauv av xaim.
2. Lifting hnyav: xa mus rau "Motor Lifting Calculation Formula", nco ntsoov tias qhov hnyav no tsis suav nrog "kev nyab xeeb", nws raug nquahu kom xaiv lub cev muaj zog raws li 70% ntawm qhov hnyav no.
3. Lub neej ntawd teeb tsa ntawm lub tshuab dov lub qhov rooj yog "kev teeb tsa txoj cai" (uas yog, txoj cai sab xis thaum ib tus neeg sawv hauv lub qhov rooj thiab nws lub ntsej muag tig rau sab nraud ntawm lub qhov rooj).Txhawm rau txuas cov bolts, tig lub plhaub nruab nrab ntawm 180 degrees thiab muab nws rov qab.
② Loosen lub screws ntawm lub laub hloov thiab tig lub vaj huam sib luag 180 degrees rau nruab.
③ Hloov lub caij nplooj ntoos hlav torsion nyob rau sab laug ntawm cov khoom siv tiv thaiv tawg, thiab kho cov menyuam kom nws thawb mus rau pem hauv ntej.
4. Thaum siv lub khawm hloov los hloov txoj kev khiav ntawm lub dov shutter, thov nias lub khawm nres ua ntej.
5. Lub cev muaj zog yog tsim rau lub sijhawm ua haujlwm luv luv, thiab lub sijhawm ua haujlwm tsis tu ncua tsis pub dhau 8 feeb.
6.Kev ceeb toom sov: Thaum lub qhov rooj khiav, cov neeg taug kev thiab tsheb raug txwv nruj heev.
