SDJ Series ACIM Controller (3KW)
SDJ series lub cev muaj zog tswj (3KW) cov lus piav qhia
SDJ series AC maub los yog tus tsav tsheb tsim rau AC hluav taws xob tsheb hauv qhov hluav taws xob tsawg.Raws li cov cuab yeej tsav tsheb ntawm kev ntseeg siab thiab loj torque asynchronous lub cev muaj zog, tsim nrog plaub quadrants vector tswj txoj kev, nws tuaj yeem tswj tau lub cev muaj zog & torque precisely.Nws yog dav siv nyob rau hauv ntshiab hluav taws xob neeg nrog caij tsheb, tsawg-ceev A00 chav kawm ntawv neeg nrog caij tsheb, hluav taws xob sightseeing tsheb, hluav taws xob sweeper tsheb, hluav taws xob logistic tsheb, thiab lwm yam.
SDJ series AC maub los txais kev tswj cov tsav digital nrog DSP ua cov tub ntxhais, thiab qib kev tiv thaiv mus txog IP67.Tus maub los txais asynchronous lub cev muaj zog nrog kev ntseeg siab thiab siab torque raws li kev tsav tsheb, uas muaj cov yam ntxwv ntawm qhov me me, lub teeb yuag, kev ntseeg siab thiab cov lus teb ceev ceev.Nrog lub zog tawm tswv yim ua haujlwm kom nce kev caij nkoj hla;thiab ntau yam kev tiv thaiv tsim xws li txwv tam sim no, dhau tam sim no, tshaj qhov kub thiab txias, xauv rotor, luv Circuit Court, thiab lwm yam.
Nta
●Tus maub los txais yuav German DSP, lub tshuab hluav taws xob thoob ntiaj teb digital tsav raws li lub hauv paus tswj nti, uas pab tsim lub platform zoo rau kev tswj lub cev muaj zog algorithm.
●Los ntawm kev siv lub zog siab MOSFET raj rau lub tshuab hluav taws xob, nws tuaj yeem paub txog lub zog hloov pauv tau zoo.
●Kev tiv thaiv ntau yam kev nyab xeeb rau CAN interface thiab kev tswj xyuas kev nyab xeeb ntawm lithium roj teeb BMS.
●Txhawb kev tiv thaiv luv luv (theem – av, theem – theem, theem – qhov chaw), overload, tshaj kub, tshaj voltage tiv thaiv.
●Ib qho kev txhim khu kev qha & hloov tau yooj yim regenerative nres tshuab tuaj yeem txhim kho kev tsav tsheb, kom ua tau raws li qhov xav tau ntawm cov neeg siv khoom, txawm tias nyob rau hauv kev tsav tsheb qis.
●Siv cov cuab yeej siv micro-motion & qeeb qhovntsej thiaj tsis mob thiab toj-tuav thev naus laus zis rau txoj kab nqes hav, muaj peev xwm nce toj muaj zog, ruaj khov-tuav, muaj zog pib.
●Txais kev ua kom zoo tshaj plaws algorithm & zaus 0 txog 300 HZ, kom txo cov suab nrov thiab kev co amplitude.
●Zoo meej kev tiv thaiv muaj nuj nqi, lub buzzer nco txog txhua yam ntawm kev ua txhaum, nws yooj yim txij nkawm.
●Txais siv CAN-bus thev naus laus zis los txo cov kab txuas txuas, qhov ntsuas tuaj yeem hloov kho thiab nws yog programmable online.
●Txais kev tsim qauv tsim kom muaj qhov ntim me me thiab qhov hnyav dua.Kev kawm ua tus kheej, ua kom yooj yim rau kev teeb tsa thiab debugging cov kauj ruam.
Rau cov tuam txhab tsheb: kev thauj khoom yooj yim, tsis muaj kev txhawj xeeb tom qab muag
●Muaj zog adaptability thiab kev kawm tus kheej muaj nuj nqi
●Nto moo Hoobkas khoom, txhim khu kev qha zoo
●Self-detection fault alarm muaj nuj nqi
Rau cov neeg siv: muaj zog kev, indulgent gallop
●Kev tsav tsheb yog du, pib muaj zog, thiab kev nrawm nrawm yog muaj zog
●Loj torque, muaj zog nce toj muaj peev xwm, tiv thaiv plam ntawm txoj kab nqes
●Lub zog tawm tswv yim, nce kev caij nkoj, nce roj teeb lub neej
Khoom siv: kev tsim qauv, kev txiav txim siab
●Kev ua haujlwm ruaj khov
●Zoo meej kev nyab xeeb thiab kev tiv thaiv tsim
Specification
| Controller Qauv | SDJ-7.5KW | |||
| Hluav taws xob | Cov tswv yim (DC / V) | 72v ua | 96v ua | 144 v ib |
| Max tam sim no tso zis (AC / A) | 400 A | 320a ua | 250 A | |
| Rated tam sim no tso zis (AC / A) | 115 A | 78a ib | 52 A | |
| Max zog tso zis (KW) | 30 | 30 | 30 | |
| Max zaus tso zis (Hz) | 300 | 300 | 300 | |
| Ua haujlwm qhov kub thiab txias (℃) | -30 ° C - + 55 ° C | |||
| Cia ib puag ncig qhov kub thiab txias (℃) | -40 ° C --- + 70 ° C | |||
| IP chav kawm | IP67 | |||
| Insulated kev ua tau zoo | 72V / 96V Input & tso zis rau lub plhaub DC1000V, xau tam sim no 0.05mA, insulated tsis kam 20MΩ | |||
| 144V Tawm tswv yim & tso tawm rau lub plhaub DC2100V, xau tam sim no 2.1mA, insulated tsis kam 1MΩ | ||||
| Controller efficiency | 0.98 ib | |||
| Txoj kev ua kom txias | Naturel txias / Cua txias | |||
| Tswj txoj kev | Vector tswj | |||
| Hom Tsav | Asynchronous lub cev muaj zog | |||
| Kev vibration standard | GB / T2423 | |||
| Txoj kev sib txuas lus | YOG | |||
| Qhov hnyav (Kg) | 4kg ua | |||

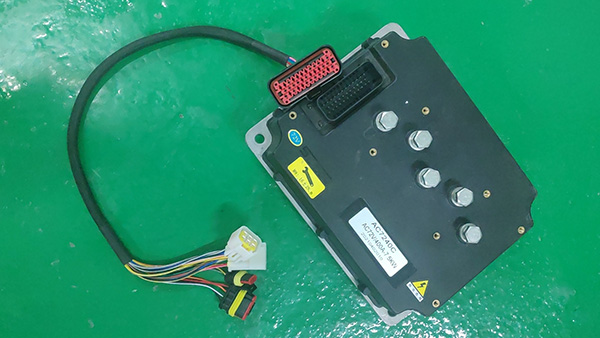

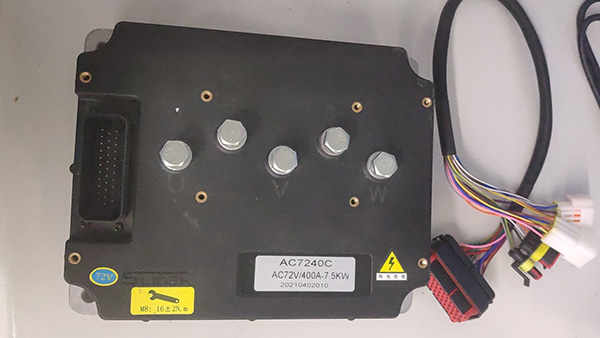

Khoom duab

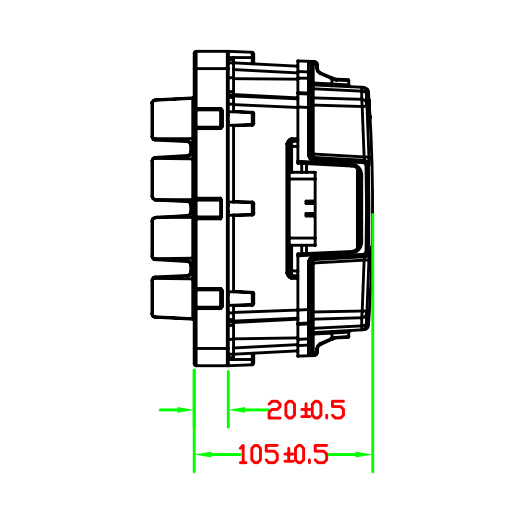

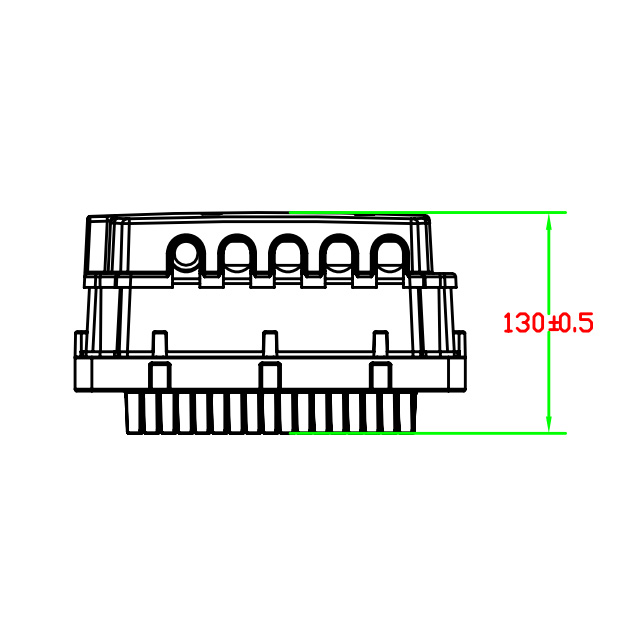

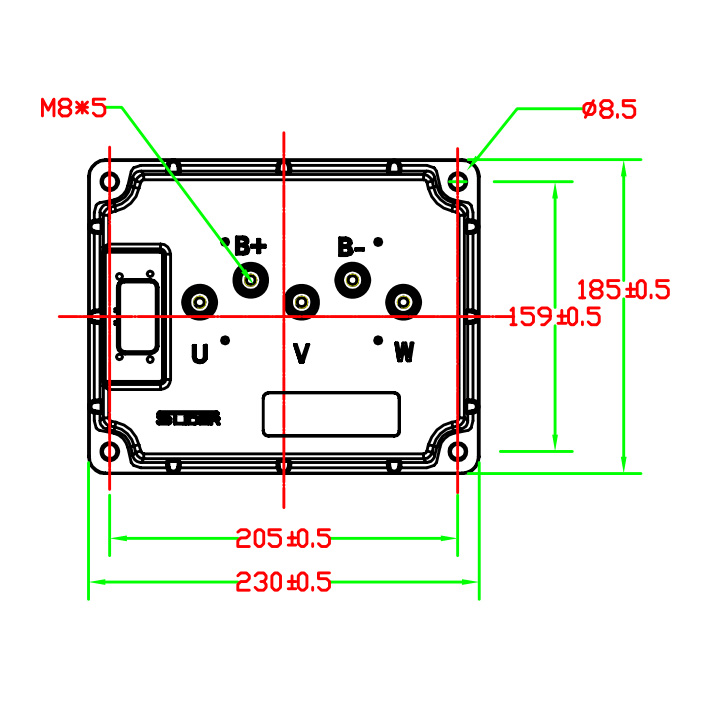

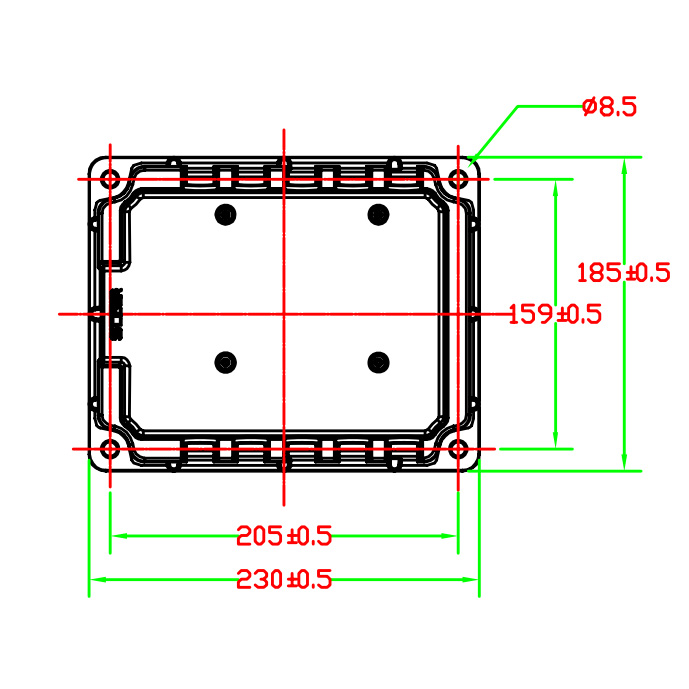

Dimension Drawings
