24 ~ 72V DC hom 1t ncaj diav rawg sib npaug hnyav hluav taws xob forklift lub cev muaj zog
Product Description

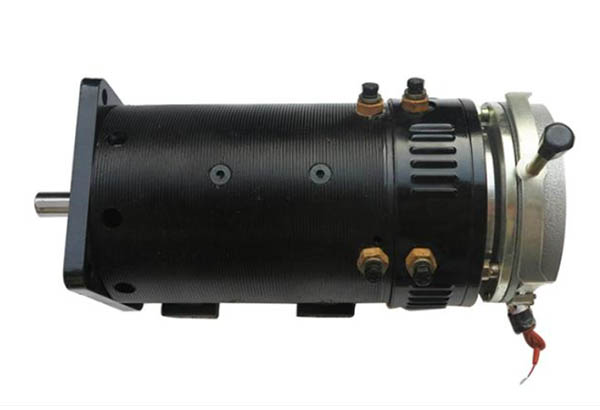

Cov qauv ntawm hluav taws xob forklift lub cev muaj zog yog yooj yim dua li ntawm sab hauv combustion forklift.Daim duab qhia txog 1DC hom 1t ncaj diav rawg sib npaug hnyav hluav taws xob forklift lub cev muaj zog.
Lub hauv paus kev tsim kho ntawm lub tshuab hluav taws xob forklift muaj cov hauv qab no:
1.Lub hwj chim unit: roj teeb pob.Standard roj teeb voltages yog 24, 30, 48, thiab 72V.
2.Ncej: yog tus ncej ntawm lub forklift, welded nrog hlau thiab hlau.Yuav luag txhua qhov chaw ntawm lub forklift yog mounted ntawm tus ncej.Nws raug rau ntau yam loads thaum lub sijhawm ua haujlwm, yog li nws yuav tsum muaj lub zog txaus thiab rigidity.
3. Kev xa mus: Lub zog ntawm lub cev muaj zog yog xa mus rau lub log tsav ntawm lub forklift.
4. Steering system: tswj kev tsav tsheb ntawm lub forklift.
5. Lub kaw lus nres: ua kom lub forklift tsav qeeb thiab nres.
6. Lub cev muaj zog thiab hluav taws xob: Lub tshuab hluav taws xob tswj lub cev muaj zog los ntawm ntau yam khoom kom ua tiav qhov pib, nres, thim rov qab thiab ceev kev tswj ntawm lub forklift, thiab rau cov roj twj tso kua mis lub cev muaj zog lossis hydraulic siab.
XINDA DC Motor Catalog
| XINDADC MOTOR CATALOG | ||
| Rated zog | Yam khoom No. | Khoom duab |
|
| Electric Forklift Tsheb Tsav |  |
|
| DC Traction Electric Tsav | |
| 7 kWm | DC Traction Electric Tsav Model 242ZDC 242ZD706H15 |
|
| 5 kWm | DC Traction Electric Tsav Model 192ZDC 192ZD525H9 |
|
| 4 KW | DC Traction Electric Tsav Model 170ZDC 170ZD402H2A3 |
|
|
| DC MOTOR rau Electric Tsheb |
|
|
| Electric Forklift Electric Tsav |
|
|
| Electric Forklift Electric Tsav |  |
| XINDA DC Tsav Series Specification Sheet | ||||||||
| Rated zog (KW) | 3 | 4 | 4.5 | 5 | 6 | 7 | 7.5 | 10 |
| Roj teeb voltage (VDC) | 48/60/72 ib | 72 | 96/144 ib | |||||
| Overload ntau | 2.5 | |||||||
| Rated tam sim no (A) | 73/58.4/48.7 | 96.8/77.5/64.5 | 109/87.2/72.7 | 118/94.7/78.9 | 138.9/111/92.5 | 108 | 116 | 116/77 ib |
| Rated Torque (NM) | 10.2 | 13.6 | 15.3 | 17 | 20.5 ib | 23.9 Nws | 25.6 ib | 34 |
| Rated Ceev (RPM) | 2800 | |||||||
| Peak Ceev (RPM) | 4500 | |||||||
| Ua Haujlwm System | S2: 60 feeb | |||||||
| Rwb thaiv tsev Level | H | |||||||
| Txoj kev txias | natural cooling / cua txias | |||||||
| Efficiency (100% LOAD) | 85 | 86 | 86 | 88 | 88 | 88 | 90 | 90 |
| Qib tiv thaiv | IP23 (IP44) | |||||||
| Daim ntawv thov | Cov neeg caij tsheb ceev ceev / tsheb thauj khoom / tsheb golf / tsheb saib xyuas / tub ceev xwm van / tsheb thauj khoom / pawg tsheb, thiab lwm yam. | |||||||
